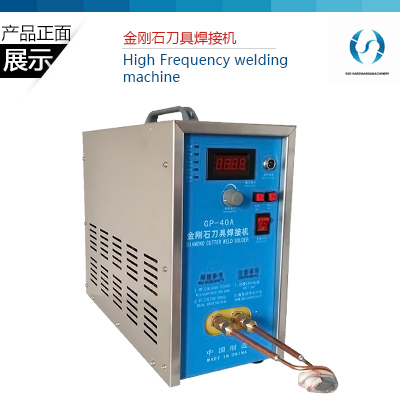

高频焊接机/Brazing machine/Induction Heater/Welding machine
OSD-GP-40
适用范围/The Scope of application
主要用于：金刚石锯片焊接，硬质合金刀具钎焊，小件金属热处理
Usage:For welding the diamond segments ，cemented carbide and small metals items
主要特点/Main Feature
1，加热速度快,焊接中径片刀头只需3-5S
2, 全负载，24小时连续作业
1, fast heating speed,3-5 seconds for 1 pieces of segments of saw blade of medium size.
2,24 hours working with 100% full load
主要参数/Main parameters
最大输入电流/Max current:40A
功率/Power：10kw
电压/Voltage：单项/Single phase AC 180V-250V
震荡频率/Oscillation frequency:30-100KHZ
净重/Net weight:20Kg
冷却水/Cooling water:Pressure>0.2Mpa;Flow 2-5L/min
外形尺寸/Size：460mm*200mm*350mm
